samples/cpp/tutorial_code/ImgTrans/houghlines.cpp

一个使用霍夫线检测器的例子


#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"

using namespace cv;
using namespace std;

int main(int argc, char** argv)
{
    // 声明输出变量
    Mat dst, cdst, cdstP;

    const char* default_file = "sudoku.png";
    const char* filename = argc >=2 ? argv[1] : default_file;

    // 加载图像
    Mat src = imread( samples::findFile( filename ), IMREAD_GRAYSCALE );

    // 检查图像是否加载成功
    if(src.empty()){
printf(" Error opening image\n");
printf(" Program Arguments: [image_name -- default %s] \n", default_file);
        return -1;
    }

    // 边缘检测
Canny(src, dst, 50, 200, 3);

    // 复制边缘到将以 BGR 显示结果的图像
cvtColor(dst, cdst, COLOR_GRAY2BGR);
cdstP = cdst.clone();

    // 标准霍夫线变换
vector<Vec2f> lines; // 将保存检测结果
HoughLines(dst, lines, 1, CV_PI/180, 150, 0, 0 ); // 运行实际检测
    // 绘制线条
    for( size_t i = 0; i < lines.size(); i++ )
    {
        float rho = lines[i][0], theta = lines[i][1];
        Point pt1, pt2;
        double a = cos(theta), b = sin(theta);
        double x0 = a*rho, y0 = b*rho;
pt1.x = cvRound(x0 + 1000*(-b));
pt1.y = cvRound(y0 + 1000*(a));
pt2.x = cvRound(x0 - 1000*(-b));
pt2.y = cvRound(y0 - 1000*(a));
line( cdst, pt1, pt2, Scalar(0,0,255), 3, LINE_AA);
    }

    // 概率霍夫线变换
vector<Vec4i> linesP; // 将保存检测结果
HoughLinesP(dst, linesP, 1, CV_PI/180, 50, 50, 10 ); // 运行实际检测
    // 绘制线条
    for( size_t i = 0; i < linesP.size(); i++ )
    {
        Vec4i l = linesP[i];
line( cdstP, Point(l[0], l[1]), Point(l[2], l[3]), Scalar(0,0,255), 3, LINE_AA);
    }

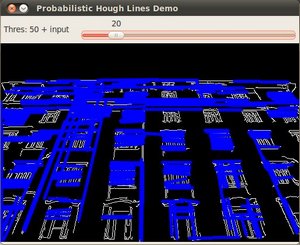

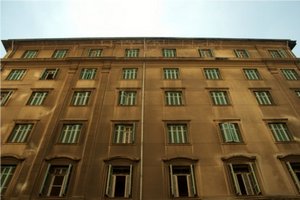

    // 显示结果
imshow("Source", src);
imshow("Detected Lines (in red) - Standard Hough Line Transform", cdst);
imshow("Detected Lines (in red) - Probabilistic Line Transform", cdstP);

    // 等待并退出
cv::Mat::empty
    return 0;
}
