原始作者	Bernát Gábor
兼容性	OpenCV >= 3.0

矩阵上的掩模操作非常简单。其思想是根据掩模矩阵（也称为核）重新计算图像中每个像素的值。该掩模包含一些值，这些值将调整相邻像素（以及当前像素）对新像素值的影响程度。从数学角度来看，我们使用指定的值进行加权平均。

我们的测试用例

让我们考虑一个图像对比度增强方法的问题。基本上，我们想对图像中的每个像素应用以下公式：

\[I(i,j) = 5*I(i,j) - [ I(i-1,j) + I(i+1,j) + I(i,j-1) + I(i,j+1)]\]

\[\iff I(i,j)*M, \text{其中 } M = \bordermatrix{ _i\backslash ^j & -1 & 0 & +1 \cr -1 & 0 & -1 & 0 \cr 0 & -1 & 5 & -1 \cr +1 & 0 & -1 & 0 \cr }\]

第一种表示方法是使用公式，而第二种是通过使用掩模对第一种进行压缩。使用掩模时，您将掩模矩阵的中心（在上述情况下由零零索引表示）放在您要计算的像素上，并将像素值与重叠的矩阵值相乘后求和。它们是相同的，但在大型矩阵的情况下，后一种表示方法更容易查看。

代码

C++

您可以从此处下载此源代码，或者在OpenCV源代码库的示例目录中查看samples/cpp/tutorial_code/core/mat_mask_operations/mat_mask_operations.cpp。

#include <opencv2/imgcodecs.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/imgproc.hpp>
#include <iostream>

using namespace std;
using namespace cv;

static void help(char* progName)
{
cout << endl
<< "This program shows how to filter images with mask: the write it yourself and the"
<< "filter2d way. " << endl
<< "Usage:" << endl
<< progName << " [image_path -- default lena.jpg] [G -- grayscale] " << endl << endl;
}


void Sharpen(const Mat& myImage,Mat& Result);

int main( int argc, char* argv[])
{
help(argv[0]);
    const char* filename = argc >=2 ? argv[1] : "lena.jpg";

    Mat src, dst0, dst1;

    if (argc >= 3 && !strcmp("G", argv[2]))
src = imread( samples::findFile( filename ), IMREAD_GRAYSCALE);
    else
src = imread( samples::findFile( filename ), IMREAD_COLOR);

    if (src.empty())
    {
cerr << "Can't open image [" << filename << "]" << endl;
        return EXIT_FAILURE;
    }

namedWindow("Input", WINDOW_AUTOSIZE);
namedWindow("Output", WINDOW_AUTOSIZE);

imshow( "Input", src );
    double t = (double)getTickCount();

Sharpen( src, dst0 );

t = ((double)getTickCount() - t)/getTickFrequency();
cout << "Hand written function time passed in seconds: " << t << endl;

imshow( "Output", dst0 );
cv::Mat::empty

    Mat kernel = (Mat_<char>(3,3) << 0, -1, 0,
                                   -1,  5, -1,
                                    0, -1,  0);

t = (double)getTickCount();

filter2D( src, dst1, src.depth(), kernel );
t = ((double)getTickCount() - t)/getTickFrequency();
cout << "Built-in filter2D time passed in seconds: " << t << endl;

imshow( "Output", dst1 );

cv::Mat::empty
    return EXIT_SUCCESS;
}
void Sharpen(const Mat& myImage,Mat& Result)
{
    CV_Assert(myImage.depth() == CV_8U); // accept only uchar images

    const int nChannels = myImage.channels();
Result.create(myImage.size(),myImage.type());

    for(int j = 1 ; j < myImage.rows-1; ++j)
    {
        const uchar* previous = myImage.ptr<uchar>(j - 1);
        const uchar* current = myImage.ptr<uchar>(j );
        const uchar* next = myImage.ptr<uchar>(j + 1);

        uchar* output = Result.ptr<uchar>(j);

        for(int i= nChannels;i < nChannels*(myImage.cols-1); ++i)
        {
output[i] = saturate_cast<uchar>(5*current[i]
-current[i-nChannels] - current[i+nChannels] - previous[i] - next[i]);
        }
    }

Result.row(0).setTo(Scalar(0));
Result.row(Result.rows-1).setTo(Scalar(0));
Result.col(0).setTo(Scalar(0));
Result.col(Result.cols-1).setTo(Scalar(0));
}

Java

您可以从此处下载此源代码，或者在OpenCV源代码库的示例目录中查看samples/java/tutorial_code/core/mat_mask_operations/MatMaskOperations.java。

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.Scalar;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class MatMaskOperationsRun {

    public void run(String[] args) {

String filename = "../data/lena.jpg";

        int img_codec = Imgcodecs.IMREAD_COLOR;
        if (args.length != 0) {
filename = args[0];
            if (args.length >= 2 && args[1].equals("G"))
img_codec = Imgcodecs.IMREAD_GRAYSCALE;
        }

Mat src = Imgcodecs.imread(filename, img_codec);

        if (src.empty()) {
System.out.println("Can't open image [" + filename + "]");
System.out.println("Program Arguments: [image_path -- default ../data/lena.jpg] [G -- grayscale]");
System.exit(-1);
        }

HighGui.namedWindow("Input", HighGui.WINDOW_AUTOSIZE);
HighGui.namedWindow("Output", HighGui.WINDOW_AUTOSIZE);

HighGui.imshow( "Input", src );
        double t = System.currentTimeMillis();

Mat dst0 = sharpen(src, new Mat());

t = ((double) System.currentTimeMillis() - t) / 1000;
System.out.println("Hand written function time passed in seconds: " + t);

HighGui.imshow( "Output", dst0 );
HighGui.moveWindow("Output", 400, 400);
HighGui.waitKey();

Mat kern = new Mat(3, 3, CvType.CV_8S);
        int row = 0, col = 0;
kern.put(row, col, 0, -1, 0, -1, 5, -1, 0, -1, 0);

t = System.currentTimeMillis();

Mat dst1 = new Mat();
Imgproc.filter2D(src, dst1, src.depth(), kern);
t = ((double) System.currentTimeMillis() - t) / 1000;
System.out.println("Built-in filter2D time passed in seconds: " + t);

HighGui.imshow( "Output", dst1 );

HighGui.waitKey();
System.exit(0);
    }

    public static double saturate(double x) {
        return x > 255.0 ? 255.0 : (x < 0.0 ? 0.0 : x);
    }

    public Mat sharpen(Mat myImage, Mat Result) {
myImage.convertTo(myImage, CvType.CV_8U);

        int nChannels = myImage.channels();
Result.create(myImage.size(), myImage.type());

        for (int j = 1; j < myImage.rows() - 1; ++j) {
            for (int i = 1; i < myImage.cols() - 1; ++i) {
                double sum[] = new double[nChannels];

                for (int k = 0; k < nChannels; ++k) {

                    double top = -myImage.get(j - 1, i)[k];
                    double bottom = -myImage.get(j + 1, i)[k];
                    double center = (5 * myImage.get(j, i)[k]);
                    double left = -myImage.get(j, i - 1)[k];
                    double right = -myImage.get(j, i + 1)[k];

                    sum[k] = saturate(top + bottom + center + left + right);
                }

Result.put(j, i, sum);
            }
        }

Result.row(0).setTo(new Scalar(0));
Result.row(Result.rows() - 1).setTo(new Scalar(0));
Result.col(0).setTo(new Scalar(0));
Result.col(Result.cols() - 1).setTo(new Scalar(0));

        return Result;
    }
}

public class MatMaskOperations {
    public static void main(String[] args) {
        // 加载本地库。
System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
        new MatMaskOperationsRun().run(args);
    }
}

Python

您可以从此处下载此源代码，或者在OpenCV源代码库的示例目录中查看samples/python/tutorial_code/core/mat_mask_operations/mat_mask_operations.py。

from __future__ import print_function
import sys
import time

import numpy as np
import cv2 as cv


def is_grayscale(my_image)
    return len(my_image.shape) < 3


def saturated(sum_value)
    if sum_value > 255
sum_value = 255
    if sum_value < 0
sum_value = 0

    return sum_value


def sharpen(my_image)
    if is_grayscale(my_image)
height, width = my_image.shape
    else:
my_image = cv.cvtColor(my_image, cv.CV_8U)
height, width, n_channels = my_image.shape

result = np.zeros(my_image.shape, my_image.dtype)

    for j in range(1, height - 1)
        for i in range(1, width - 1)
            if is_grayscale(my_image)
sum_value = 5 * my_image[j, i] - my_image[j + 1, i] - my_image[j - 1, i] \
- my_image[j, i + 1] - my_image[j, i - 1]
result[j, i] = saturated(sum_value)
            else:
                for k in range(0, n_channels)
sum_value = 5 * my_image[j, i, k] - my_image[j + 1, i, k] \
- my_image[j - 1, i, k] - my_image[j, i + 1, k]\
- my_image[j, i - 1, k]
result[j, i, k] = saturated(sum_value)

    return result


def main(argv)
filename = 'lena.jpg'

img_codec = cv.IMREAD_COLOR
    if argv
filename = sys.argv[1]
        if len(argv) >= 2 and sys.argv[2] == "G"
img_codec = cv.IMREAD_GRAYSCALE

src = cv.imread(cv.samples.findFile(filename), img_codec)

    if src is None
print("Can't open image [" + filename + "]")
print("Usage:")
print("mat_mask_operations.py [image_path -- default lena.jpg] [G -- grayscale]")
        return -1

    cv.namedWindow("Input", cv.WINDOW_AUTOSIZE)
    cv.namedWindow("Output", cv.WINDOW_AUTOSIZE)

    cv.imshow("Input", src)
t = round(time.time())

dst0 = sharpen(src)

t = (time.time() - t)
print("Hand written function time passed in seconds: %s" % t)

    cv.imshow("Output", dst0)
    cv.waitKey()

t = time.time()

kernel = np.array([[0, -1, 0],
                       [-1, 5, -1],
[0, -1, 0]], np.float32) # kernel should be floating point type

dst1 = cv.filter2D(src, -1, kernel)
    # ddepth = -1, means destination image has depth same as input image


t = (time.time() - t)
print("Built-in filter2D time passed in seconds: %s" % t)

    cv.imshow("Output", dst1)

    cv.waitKey(0)
    cv.destroyAllWindows()
    return 0


if __name__ == "__main__"
    main(sys.argv[1:])

基本方法

现在让我们看看如何通过使用基本的像素访问方法或使用filter2D()函数来实现这一点。

这是一个可以实现此功能的函数

C++

void Sharpen(const Mat& myImage,Mat& Result)
{
    CV_Assert(myImage.depth() == CV_8U); // accept only uchar images

    const int nChannels = myImage.channels();
Result.create(myImage.size(),myImage.type());

    for(int j = 1 ; j < myImage.rows-1; ++j)
    {
        const uchar* previous = myImage.ptr<uchar>(j - 1);
        const uchar* current = myImage.ptr<uchar>(j );
        const uchar* next = myImage.ptr<uchar>(j + 1);

        uchar* output = Result.ptr<uchar>(j);

        for(int i= nChannels;i < nChannels*(myImage.cols-1); ++i)
        {
output[i] = saturate_cast<uchar>(5*current[i]
-current[i-nChannels] - current[i+nChannels] - previous[i] - next[i]);
        }
    }

Result.row(0).setTo(Scalar(0));
Result.row(Result.rows-1).setTo(Scalar(0));
Result.col(0).setTo(Scalar(0));
Result.col(Result.cols-1).setTo(Scalar(0));
}

首先，我们确保输入图像数据是无符号字符（unsigned char）格式。为此，我们使用CV_Assert函数（宏），当其中的表达式为假时，它会抛出错误。

    CV_Assert(myImage.depth() == CV_8U); // accept only uchar images

Java

    public static double saturate(double x) {
        return x > 255.0 ? 255.0 : (x < 0.0 ? 0.0 : x);
    }

    public Mat sharpen(Mat myImage, Mat Result) {
myImage.convertTo(myImage, CvType.CV_8U);

        int nChannels = myImage.channels();
Result.create(myImage.size(), myImage.type());

        for (int j = 1; j < myImage.rows() - 1; ++j) {
            for (int i = 1; i < myImage.cols() - 1; ++i) {
                double sum[] = new double[nChannels];

                for (int k = 0; k < nChannels; ++k) {

                    double top = -myImage.get(j - 1, i)[k];
                    double bottom = -myImage.get(j + 1, i)[k];
                    double center = (5 * myImage.get(j, i)[k]);
                    double left = -myImage.get(j, i - 1)[k];
                    double right = -myImage.get(j, i + 1)[k];

                    sum[k] = saturate(top + bottom + center + left + right);
                }

Result.put(j, i, sum);
            }
        }

Result.row(0).setTo(new Scalar(0));
Result.row(Result.rows() - 1).setTo(new Scalar(0));
Result.col(0).setTo(new Scalar(0));
Result.col(Result.cols() - 1).setTo(new Scalar(0));

        return Result;
    }

首先，我们确保输入图像数据是无符号8位格式。

myImage.convertTo(myImage, CvType.CV_8U);

Python

def is_grayscale(my_image)
    return len(my_image.shape) < 3


def saturated(sum_value)
    if sum_value > 255
sum_value = 255
    if sum_value < 0
sum_value = 0

    return sum_value


def sharpen(my_image)
    if is_grayscale(my_image)
height, width = my_image.shape
    else:
my_image = cv.cvtColor(my_image, cv.CV_8U)
height, width, n_channels = my_image.shape

result = np.zeros(my_image.shape, my_image.dtype)

    for j in range(1, height - 1)
        for i in range(1, width - 1)
            if is_grayscale(my_image)
sum_value = 5 * my_image[j, i] - my_image[j + 1, i] - my_image[j - 1, i] \
- my_image[j, i + 1] - my_image[j, i - 1]
result[j, i] = saturated(sum_value)
            else:
                for k in range(0, n_channels)
sum_value = 5 * my_image[j, i, k] - my_image[j + 1, i, k] \
- my_image[j - 1, i, k] - my_image[j, i + 1, k]\
- my_image[j, i - 1, k]
result[j, i, k] = saturated(sum_value)

    return result

首先，我们确保输入图像数据是无符号8位格式。

my_image = cv.cvtColor(my_image, cv.CV_8U)

我们创建一个与输入图像大小和类型相同的输出图像。如您在存储一节中所见，根据通道数，我们可能有一个或多个子列。

C++

我们将通过指针遍历它们，因此元素的总数取决于此（通道）数量。

    const int nChannels = myImage.channels();
Result.create(myImage.size(),myImage.type());

Java

        int nChannels = myImage.channels();
Result.create(myImage.size(), myImage.type());

Python

height, width, n_channels = my_image.shape
result = np.zeros(my_image.shape, my_image.dtype)

C++

我们将使用普通的C语言 `[]` 运算符来访问像素。由于我们需要同时访问多行，因此我们将获取每行的指针（前一行、当前行和下一行）。我们还需要另一个指针来保存计算结果。然后，只需使用 `[]` 运算符访问正确的项。为了将输出指针向前移动，我们只需在每次操作后将其增加（一个字节）。

    for(int j = 1 ; j < myImage.rows-1; ++j)
    {
        const uchar* previous = myImage.ptr<uchar>(j - 1);
        const uchar* current = myImage.ptr<uchar>(j );
        const uchar* next = myImage.ptr<uchar>(j + 1);

        uchar* output = Result.ptr<uchar>(j);

        for(int i= nChannels;i < nChannels*(myImage.cols-1); ++i)
        {
output[i] = saturate_cast<uchar>(5*current[i]
-current[i-nChannels] - current[i+nChannels] - previous[i] - next[i]);
        }
    }

在图像的边界处，上述表示法会导致不存在的像素位置（例如负一 - 负一）。在这些点，我们的公式是未定义的。一个简单的解决方案是，在这些点不应用核，例如，将边界上的像素设置为零。

Result.row(0).setTo(Scalar(0));
Result.row(Result.rows-1).setTo(Scalar(0));
Result.col(0).setTo(Scalar(0));
Result.col(Result.cols-1).setTo(Scalar(0));

Java

我们需要访问多行和多列，这可以通过向当前中心(i,j)添加或减去1来实现。然后我们应用求和并将新值放入Result矩阵中。

        for (int j = 1; j < myImage.rows() - 1; ++j) {
            for (int i = 1; i < myImage.cols() - 1; ++i) {
                double sum[] = new double[nChannels];

                for (int k = 0; k < nChannels; ++k) {

                    double top = -myImage.get(j - 1, i)[k];
                    double bottom = -myImage.get(j + 1, i)[k];
                    double center = (5 * myImage.get(j, i)[k]);
                    double left = -myImage.get(j, i - 1)[k];
                    double right = -myImage.get(j, i + 1)[k];

                    sum[k] = saturate(top + bottom + center + left + right);
                }

Result.put(j, i, sum);
            }
        }

在图像的边界处，上述表示法会导致不存在的像素位置（例如(-1,-1)）。在这些点，我们的公式是未定义的。一个简单的解决方案是，在这些点不应用核，例如，将边界上的像素设置为零。

Result.row(0).setTo(new Scalar(0));
Result.row(Result.rows() - 1).setTo(new Scalar(0));
Result.col(0).setTo(new Scalar(0));
Result.col(Result.cols() - 1).setTo(new Scalar(0));

Python

我们需要访问多行和多列，这可以通过向当前中心(i,j)添加或减去1来实现。然后我们应用求和并将新值放入Result矩阵中。

    for j in range(1, height - 1)
        for i in range(1, width - 1)
            if is_grayscale(my_image)
sum_value = 5 * my_image[j, i] - my_image[j + 1, i] - my_image[j - 1, i] \
- my_image[j, i + 1] - my_image[j, i - 1]
result[j, i] = saturated(sum_value)
            else:
                for k in range(0, n_channels)
sum_value = 5 * my_image[j, i, k] - my_image[j + 1, i, k] \
- my_image[j - 1, i, k] - my_image[j, i + 1, k]\
- my_image[j, i - 1, k]
result[j, i, k] = saturated(sum_value)

filter2D 函数

这类滤波器在图像处理中非常常见，以至于OpenCV中有一个函数可以处理掩模（在某些地方也称为核）的应用。为此，您首先需要定义一个持有掩模的对象。

C++

    Mat kernel = (Mat_<char>(3,3) << 0, -1, 0,
                                   -1,  5, -1,
                                    0, -1,  0);

Java

Mat kern = new Mat(3, 3, CvType.CV_8S);
        int row = 0, col = 0;
kern.put(row, col, 0, -1, 0, -1, 5, -1, 0, -1, 0);

Python

kernel = np.array([[0, -1, 0],
                       [-1, 5, -1],
[0, -1, 0]], np.float32) # kernel should be floating point type

然后调用filter2D()函数，指定输入图像、输出图像和要使用的核。

C++

    filter2D( src, dst1, src.depth(), kernel );

Java

Imgproc.filter2D(src, dst1, src.depth(), kern);

Python

dst1 = cv.filter2D(src, -1, kernel)
    # ddepth = -1, means destination image has depth same as input image

该函数甚至还有一个可选的第五个参数用于指定核的中心，第六个参数用于在将过滤后的像素存储到K中之前向其添加一个可选值，以及第七个参数用于确定在操作未定义的区域（边界）中如何处理。

这个函数更短，更简洁，而且由于存在一些优化，它通常比手动编写的方法更快。例如，在我的测试中，第二个方法只用了13毫秒，而第一个方法用了大约31毫秒。差异相当大。

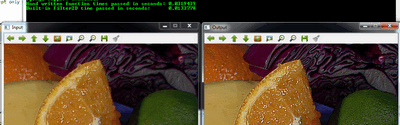

例如

C++

在我们的YouTube频道上查看运行该程序的一个实例。
