变换

前一篇教程: 小部件的姿态
下一篇教程: 创建小部件

目标

在本教程中，您将学习如何

• 如何使用 makeTransformToGlobal 计算姿态
• 如何使用 makeCameraPose 和 Viz3d::setViewerPose
• 如何通过坐标轴和视锥体可视化相机位置

代码

您可以从 这里 下载代码。


#include <opencv2/viz.hpp>
#include <iostream>
#include <fstream>

using namespace cv;
using namespace std;

static void help()
{
cout
<< "--------------------------------------------------------------------------" << endl
<< "此程序演示如何使用 makeTransformToGlobal() 来计算所需的姿态，"
<< "如何使用 makeCameraPose 和 Viz3d::setViewerPose。您可以从场景中观察 "
<< "相机视角 (C) 或全局视角 (G)" << endl
<< "用法:" << endl
<< "./transformations [ G | C ]" << endl
<< endl;
}

static Mat cvcloud_load()
{
    Mat cloud(1, 1889, CV_32FC3);
ifstream ifs("bunny.ply");

    string str;
    for(size_t i = 0; i < 12; ++i)
getline(ifs, str);

    Point3f* data = cloud.ptr<cv::Point3f>();
    float dummy1, dummy2;
    for(size_t i = 0; i < 1889; ++i)
ifs >> data[i].x >> data[i].y >> data[i].z >> dummy1 >> dummy2;

cloud *= 5.0f;
    return cloud;
}

int main(int argn, char **argv)
{
help();

    if (argn < 2)
    {
cout << "缺少参数。" << endl;
        return 1;
    }

    bool camera_pov = (argv[1][0] == 'C');

    viz::Viz3d myWindow("坐标框架");

myWindow.showWidget("坐标小部件", viz::WCoordinateSystem());

    Vec3f cam_pos(3.0f,3.0f,3.0f), cam_focal_point(3.0f,3.0f,2.0f), cam_y_dir(-1.0f,0.0f,0.0f);

    Affine3f cam_pose = viz::makeCameraPose(cam_pos, cam_focal_point, cam_y_dir);

    Affine3f transform = viz::makeTransformToGlobal(Vec3f(0.0f,-1.0f,0.0f), Vec3f(-1.0f,0.0f,0.0f), Vec3f(0.0f,0.0f,-1.0f), cam_pos);

    Mat bunny_cloud = cvcloud_load();
    viz::WCloud cloud_widget(bunny_cloud, viz::Color::green());

    Affine3f cloud_pose = Affine3f().translate(Vec3f(0.0f,0.0f,3.0f));
    Affine3f cloud_pose_global = transform * cloud_pose;

    if (!camera_pov)
    {
        viz::WCameraPosition cpw(0.5); // 坐标轴
        viz::WCameraPosition cpw_frustum(Vec2f(0.889484, 0.523599)); // 相机视锥体
myWindow.showWidget("CPW", cpw, cam_pose);
myWindow.showWidget("CPW_FRUSTUM", cpw_frustum, cam_pose);
    }

myWindow.showWidget("bunny", cloud_widget, cloud_pose_global);

    if (camera_pov)
myWindow.setViewerPose(cam_pose);

myWindow.spin();

    return 0;
}

说明

这是程序的一般结构

• 创建一个可视化窗口。


  viz::Viz3d myWindow("变换");

• 从相机位置、相机焦点和 y 方向获取相机姿态。


  Point3f cam_pos(3.0f,3.0f,3.0f), cam_focal_point(3.0f,3.0f,2.0f), cam_y_dir(-1.0f,0.0f,0.0f);

  Affine3f cam_pose = viz::makeCameraPose(cam_pos, cam_focal_point, cam_y_dir);

• 知道相机坐标系的坐标轴，获得变换矩阵。


  Affine3f transform = viz::makeTransformToGlobal(Vec3f(0.0f,-1.0f,0.0f), Vec3f(-1.0f,0.0f,0.0f), Vec3f(0.0f,0.0f,-1.0f), cam_pos);

• 从 bunny.ply 文件创建一个云小部件


  Mat bunny_cloud = cvcloud_load();
  viz::WCloud cloud_widget(bunny_cloud, viz::Color::green());

• 给定相机坐标系中的姿态，估计全局姿态。


  Affine3f cloud_pose = Affine3f().translate(Vec3f(0.0f,0.0f,3.0f));
  Affine3f cloud_pose_global = transform * cloud_pose;

• 如果视点设置为全局，则可视化相机坐标框架和视锥体。


  if (!camera_pov)
  {
      viz::WCameraPosition cpw(0.5); // 坐标轴
      viz::WCameraPosition cpw_frustum(Vec2f(0.889484, 0.523599)); // 相机视锥体
  myWindow.showWidget("CPW", cpw, cam_pose);
  myWindow.showWidget("CPW_FRUSTUM", cpw_frustum, cam_pose);
  }

• 使用估计的全局姿态可视化云小部件


  myWindow.showWidget("bunny", cloud_widget, cloud_pose_global);

• 如果视点设置为相机，则将观察者姿态设置为 cam_pose。


  if (camera_pov)
  myWindow.setViewerPose(cam_pose);

结果

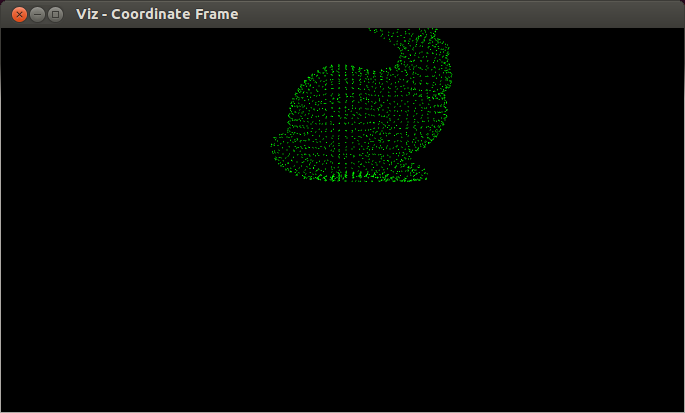

1. 这是从相机视角的結果。

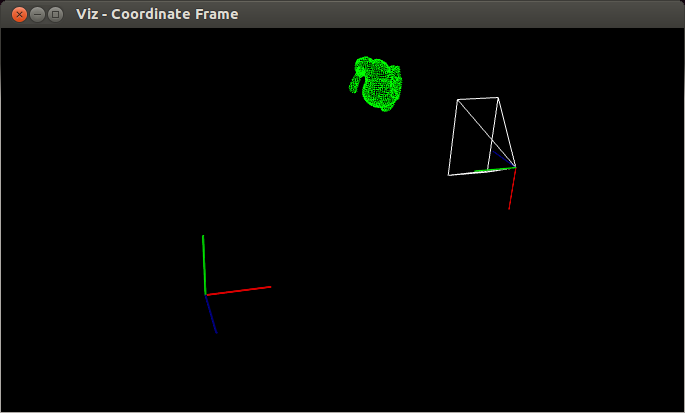

1. 这是从全局视角的結果。
